A single motor two-stage L-shaped corner workbench frame with modular assembly for commercial fit-outs, technical offices and contract furniture projects. Adjustable spans, knock-down steel construction and OEM flexibility help medium and large trading companies manage phased installation programs.

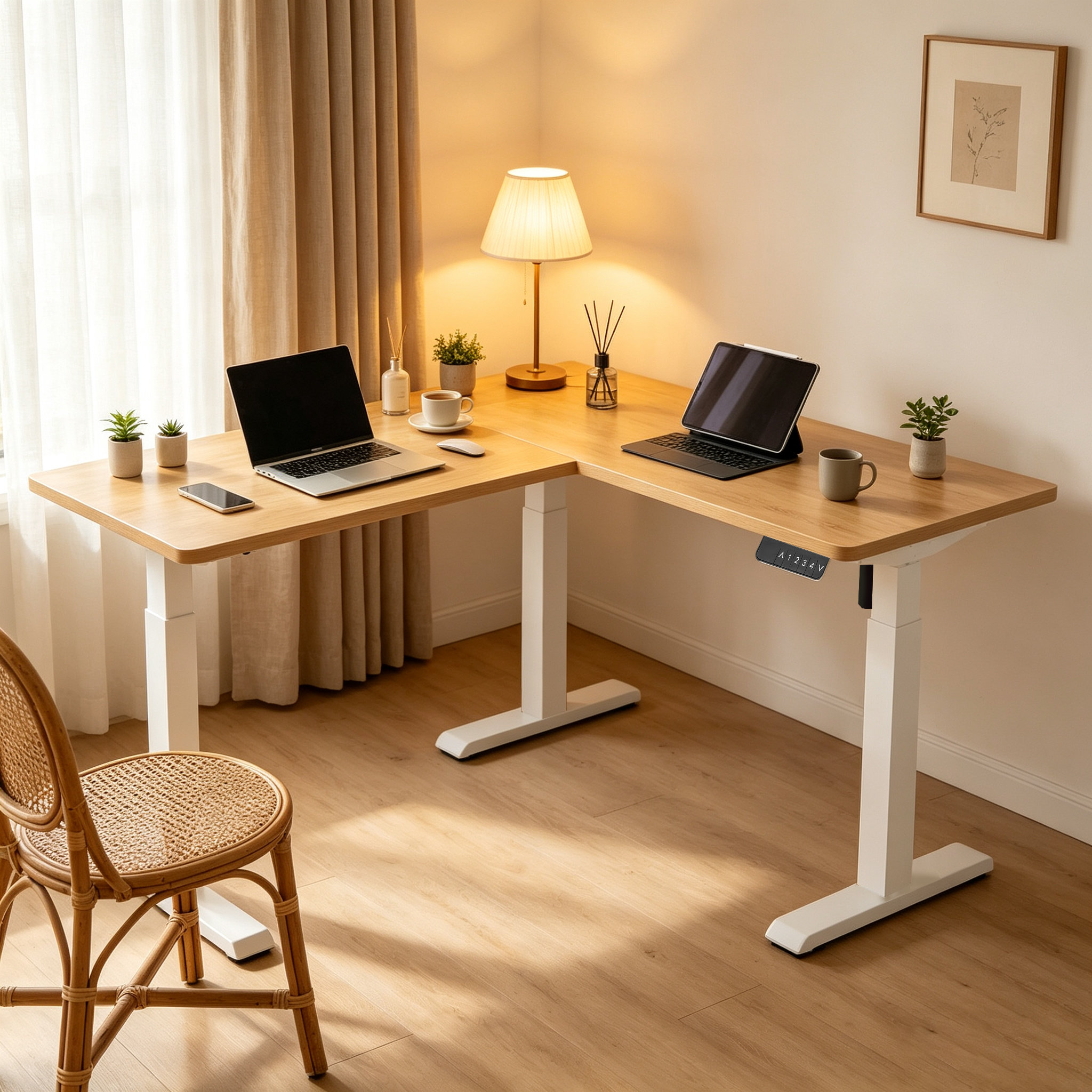

L Shaped Single Motor Two-Stage Corner Workbench Frame
This L-shaped electric workbench frame combines adjustable corner dimensions with modular knock-down construction for commercial fit-out projects. Its three-leg structure supports extended work surfaces, while the single-motor two-stage system provides practical electric height adjustment.
Project Benefits
Modular assembly supports phased site installation.
Single-motor lift offers an efficient commercial solution.
Adjustable main and return beams fit varied project desktops.
Three-leg steel design supports broad corner work areas.
Custom instructions, labels and cartons are available.
Product Attributes
| 1. Product Type | L-shaped corner workbench frame |
|---|
| 2. Drive System | Single motor |
|---|
| 3. Column Structure | Two-stage |
|---|
| 4. Leg Quantity | 3 |
|---|
| 5. Layout | L-shaped corner |
|---|
| 6. Main Width Range | 1090-1480 mm |
|---|
| 7. Return Width Range | 840-1230 mm |
|---|
| 8. Height Range | 735-1185 mm |
|---|
| 9. Foot Length | 600 mm |
|---|
| 10. Top Bracket Depth | 495 mm |
|---|
| 11. Structural Material | Steel |
|---|
| 12. Finish Method | Powder coating |
|---|
| 13. Standard Finish | Black |
|---|
| 14. Custom Finish | Available for project quantities |
|---|
| 15. Adjustment Method | Electric lifting |
|---|
| 16. Controller | Wired handset |
|---|
| 17. Basic Control | Up-down control available |
|---|
| 18. Memory Presets | Optional |
|---|
| 19. Digital Height Display | Optional |
|---|
| 20. Anti-Collision | Optional |
|---|
| 21. Overload Protection | Optional |
|---|
| 22. Thermal Protection | Optional |
|---|
| 23. Soft Start and Stop | Optional |
|---|
| 24. Noise Positioning | Low-noise commercial use |
|---|
| 25. Desktop Compatibility | L-shaped workbench tops |
|---|
| 26. Desktop Size Flexibility | Adjustable according to project needs |
|---|
| 27. Return Orientation | Configured during installation |
|---|
| 28. Crossbeam Type | Modular telescopic steel beam |
|---|
| 29. Stability Design | Three-column support structure |
|---|
| 30. Foot Support | Wide 600 mm feet |
|---|
| 31. Floor Leveling | Compatible with adjustable glides |
|---|
| 32. Cable Management | Compatible with optional accessories |
|---|
| 33. Assembly Format | Modular knock-down |
|---|
| 34. Installation Use | Suitable for fit-out crews |
|---|
| 35. Packaging Type | Export carton |
|---|
| 36. OEM Service | Supported |
|---|
| 37. ODM Service | Supported |
|---|
| 38. Logo Customization | Available |
|---|
| 39. Label Customization | Available |
|---|
| 40. Installation Manual | Custom language options available |
|---|
| 41. Sample Orders | Available subject to confirmation |
|---|
| 42. Phased Delivery | Supported |
|---|
| 43. Bulk and Container Supply | Supported |
|---|
| 44. Main Application | Commercial fit-out projects |
|---|
| 45. Target Buyers | Medium and large traders, contractors and distributors |
|---|
Contract Supply Value
The modular frame helps project suppliers organize transport, storage and phased installation. Controls, colors, labels and packaging can be adapted for commercial and institutional furniture programs.
