A single motor two-level L-shaped electric desk frame with a space-saving corner design for executive offices and management suites. Adjustable spans, three-leg support and private-label options make it suitable for medium and large office furniture traders serving premium workplace projects.

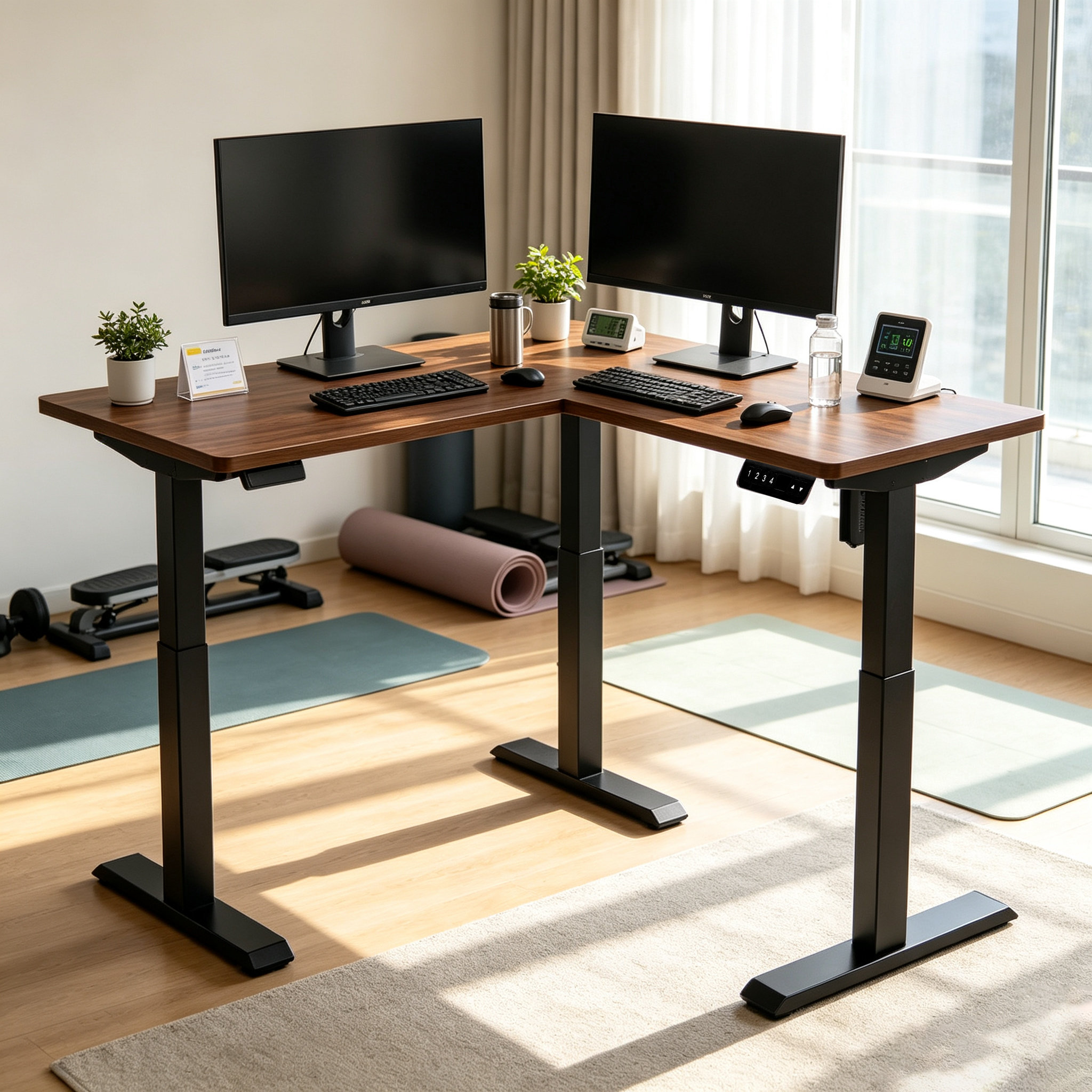

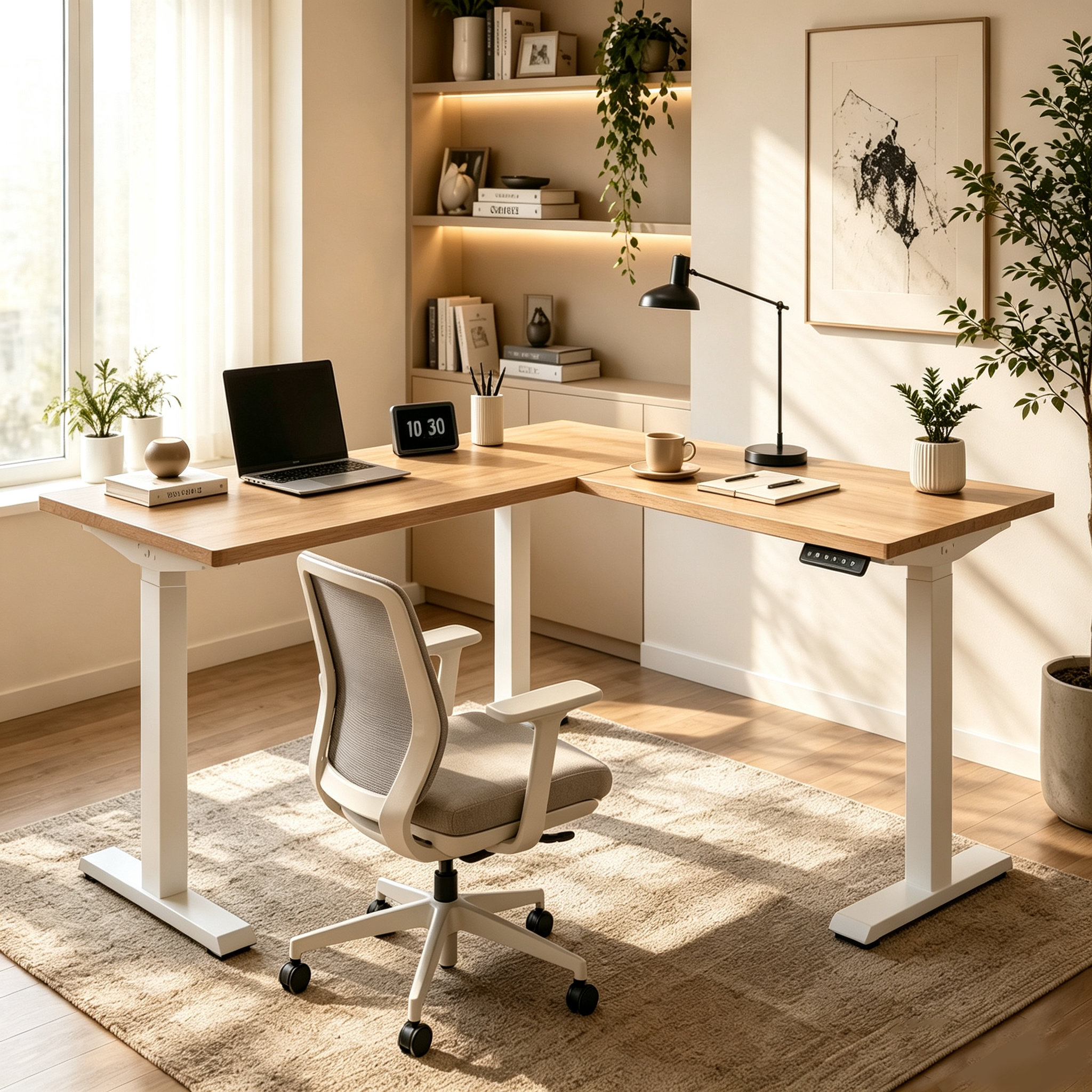

L Shaped Single Motor Two-Level Electric Desk Frame
This L-shaped desk frame is designed to maximize corner workspace in executive offices and management environments. Its single-motor two-level lifting structure provides practical height adjustment, while the adjustable main and return beams support multiple desktop configurations.
Key Advantages
Corner-saving L-shaped footprint for executive work areas.
Single-motor structure supports competitive commercial positioning.
Adjustable dimensions allow flexible desktop matching.
Three-leg steel frame supports broad work surfaces.
OEM finish, controller and packaging options are available.
Product Attributes
| 1. Product Category | L-shaped electric desk frame |
|---|
| 2. Motor Type | Single motor |
|---|
| 3. Column Level | Two-level |
|---|
| 4. Number of Legs | 3 |
|---|
| 5. Configuration | Corner L-shape |
|---|
| 6. Main Width Range | 1090-1480 mm |
|---|
| 7. Side Return Range | 840-1230 mm |
|---|
| 8. Height Adjustment Range | 735-1185 mm |
|---|
| 9. Foot Dimension | 600 mm length |
|---|
| 10. Support Arm Depth | 495 mm |
|---|
| 11. Structural Material | Steel |
|---|
| 12. Coating Process | Powder coating |
|---|
| 13. Standard Finish | Black |
|---|
| 14. Alternative Finishes | Available for bulk orders |
|---|
| 15. Adjustment Type | Electric |
|---|
| 16. Handset Type | Wired control |
|---|
| 17. Up-Down Control | Standard option |
|---|
| 18. Memory Presets | Optional |
|---|
| 19. Display Function | Optional |
|---|
| 20. Anti-Collision Function | Optional |
|---|
| 21. Overload Protection | Optional |
|---|
| 22. Thermal Protection | Optional |
|---|
| 23. Soft Start | Optional |
|---|
| 24. Soft Stop | Optional |
|---|
| 25. Operating Environment | Indoor office use |
|---|
| 26. Noise Positioning | Low-noise operation |
|---|
| 27. Desktop Shape | L-shaped desktop compatible |
|---|
| 28. Desktop Sizing | Adjustable according to project needs |
|---|
| 29. Return Side | Project-configurable orientation |
|---|
| 30. Beam Design | Telescopic steel system |
|---|
| 31. Stability Support | Three-leg wide-foot structure |
|---|
| 32. Floor Leveling | Glide compatible |
|---|
| 33. Cable Routing | Accessory compatible |
|---|
| 34. Assembly Method | Knock-down |
|---|
| 35. Installation Suitability | Dealer and project installation |
|---|
| 36. Packaging Type | Export carton |
|---|
| 37. OEM Support | Yes |
|---|
| 38. ODM Support | Yes |
|---|
| 39. Logo and Label | Customizable |
|---|
| 40. Manual Language | Custom options available |
|---|
| 41. Sample Availability | Subject to confirmation |
|---|
| 42. Bulk Order Suitability | Project and container orders |
|---|
| 43. Power Adaptation | Regional options available |
|---|
| 44. Primary Application | Executive offices |
|---|
| 45. Target Customer | Medium and large trading companies |
|---|
Commercial Positioning
The frame offers a flexible base for executive corner desks, management suites and premium office furniture collections. Buyers can customize color, controls, documentation and packaging for regional markets.
